63-160mm PE thermofusion welding machine

FOB Reference Price:Get Latest Price
$700.00 - $1,000.00 / Set | 1 Set/Sets 63-160mm PE thermofusion welding machine (Min. Order)
Model Number:
SWT160/63MS
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
MM-Tech
Input Voltage:
220V
Current:
8.4A
Dimensions:
680*520*510;500*470*620
Usage:
plastic Butt Welding
Certification:
CE ISO
HDPE Pipe Welding Machine Warranty:
Two Years
Certificate:
CE ISO
COLOR:
Red\Blue\Green
Welding ranges:
plastic pipes: 50mm-160mm
Model Number::
SWT160/50MS , SWT160/50M
Standard:
ISO11414,DVS2207-1
Ranges of application:
PE,PP and PVDF
Working voltage:
220V ±10%,50Hz
Environment temperature:
-10° ~ 45°
MOQ:
1 set
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
1.7kw
Supply Ability
Supply Ability:
5000 Set/Sets per Month 63-160mm PE thermofusion welding machine
Packaging & Delivery
Packaging Details
1 Pieces Wooden Case
Port
Shanghai,NIngbo Port
Application

63-160mm PE thermofusion welding machine

Application and Features

1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite
or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating
plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.
Optional parts:
1. Tube end device for short flange.
2. Data logger.

Technical Parameters For 63-160mm PE thermofusion welding machine
Pipe size(mm)
63,75,90,110,125,140,160
Heating plate max. temp.
270°C
Working voltage
220VAC,50/60Hz
Heating plate Power
1KW
Temp. deviation in surface(170~250℃)
<±5°C
Planing Tool Power
0.7KW
Weight
60KG
Total Power
1.7KW
Volume
0.31CBM
Packing
2Plywood Cases

 Company Profile

Greeting from MM-Tech in China!
MM-Tech is one of comprehensive manufacturer of Thermoplastic Welding Equipment and
an experienced professional exporters in China.
Our main products:butt fusion machine,socket fusion machine,electrofusion machine,
hot air welders,hot air welding machine, extrusion welders,
geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.

If you are interested in any of our products, or require any further information,
please feel free to contact us today.

You are welcome to cooperate with us to create a new chapter together.
Thermoplastic welding equipment's One stop sourcing platform,
MM-Tech will serve world thermoplastic material industry.

Make MM-Tech your first choice when sourcing for your requirements.

For more details, please visit our website: http://www.hdpeweldingmachine.com
To watch our on line videos, please go to following website:
http://www.youtube.com/c/suzhouwonstenimportexportcoltdsw
Facebook Page: https://www.facebook.com/leadersaemin


Hydraulic PE Butt Fusion Welding Machine Services
The butt fusion welding machine was designed in according to the international standard : ISO21307:2011(E),ISO12176-1 and DVS2207-1(08/2007).
International Warranty:24 months
Any parts borken or does not work under normal operating,we are free to provide.
Thermofusion Machine
Detailed Images

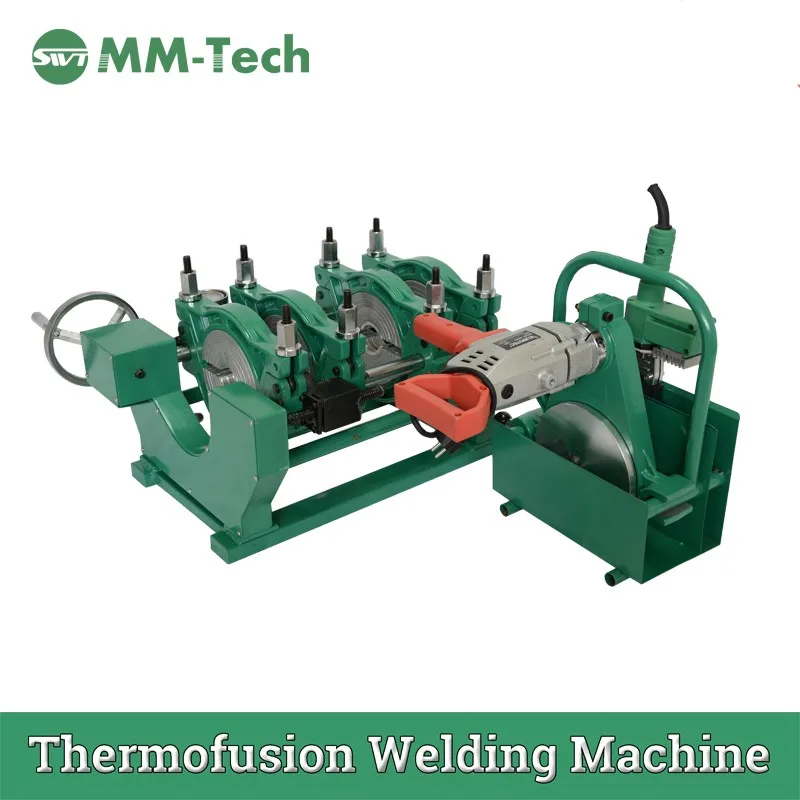

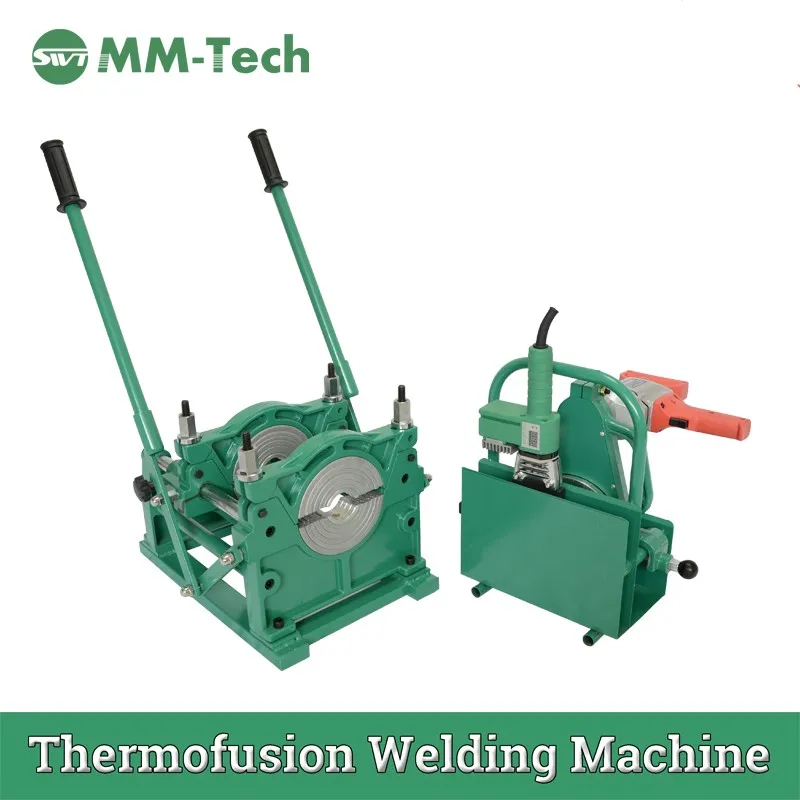

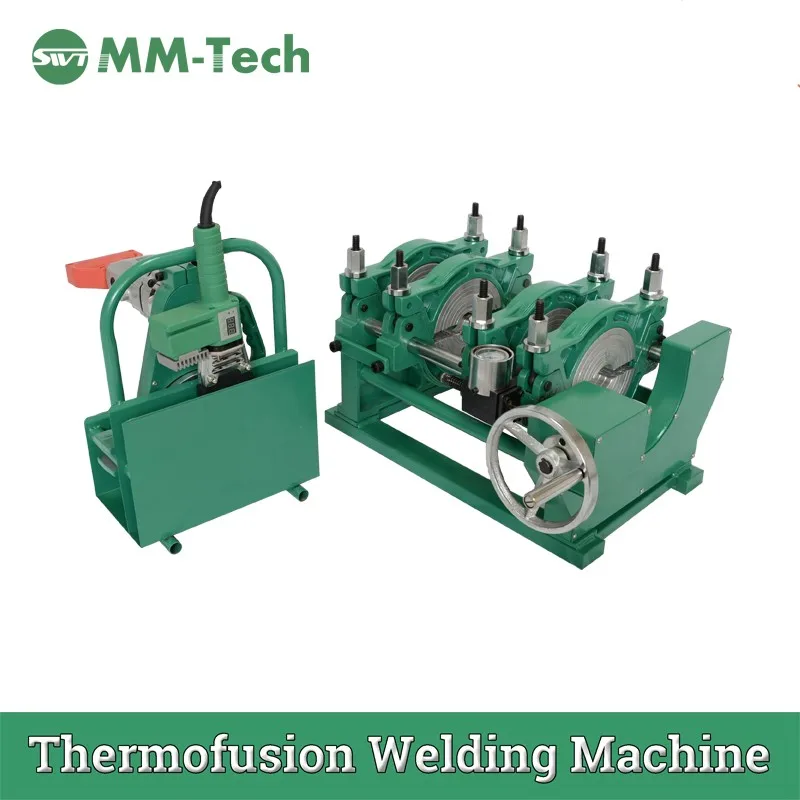

SWT160/63MS Butt Fusion Machine

Name: Manual butt fusion machine

Brand: MM-Tech

Color:Green,Red,Blue

Full completely of hdpe welding machine is consist of

1.Machine body with 4 clamps

2.Extractable heating plate: with digital display

3.Milling cutter

4.Tool Kits

SWT160/63MS Butt Fusion Machine

Name: Milling Cutter

Brand: MM-Tech
 Feature: big power motor with safety switch

                Daikin brand  PTFE coated heating plate






SWT160/63MS Butt Fusion Machine

Name: Heating Plate
Brand: MM-Tech
Feature: With a clamp opening, closing lever and timer

                   Daikin brand PTFE coated heating plate

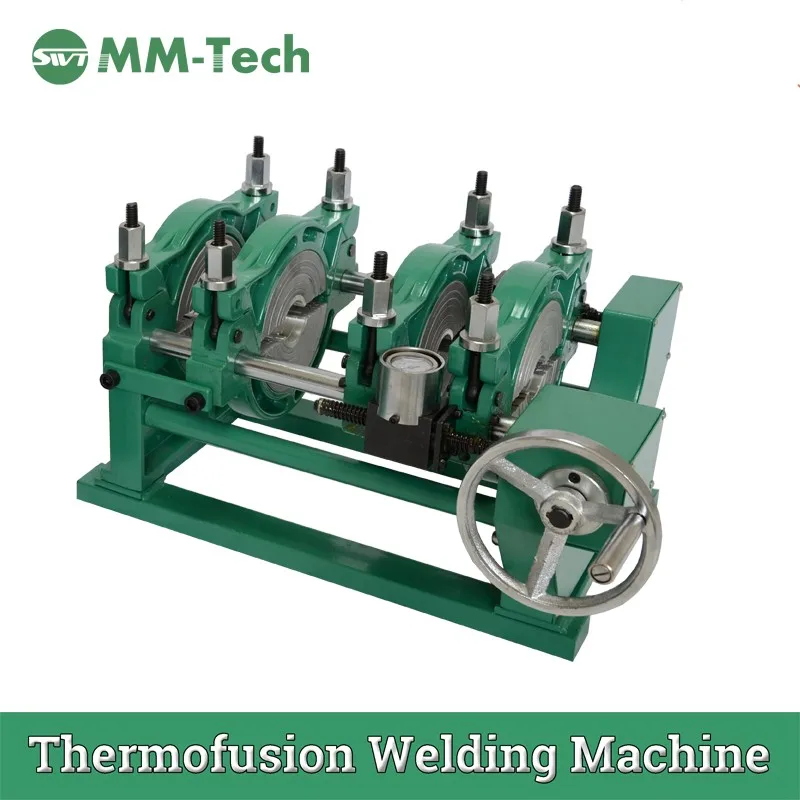

SWT160/63MS Butt Fusion Machine

Name: Frame
Brand: MM-Tech
Feature:  Lightweight and strong alloy aluminum                                         casting clamps

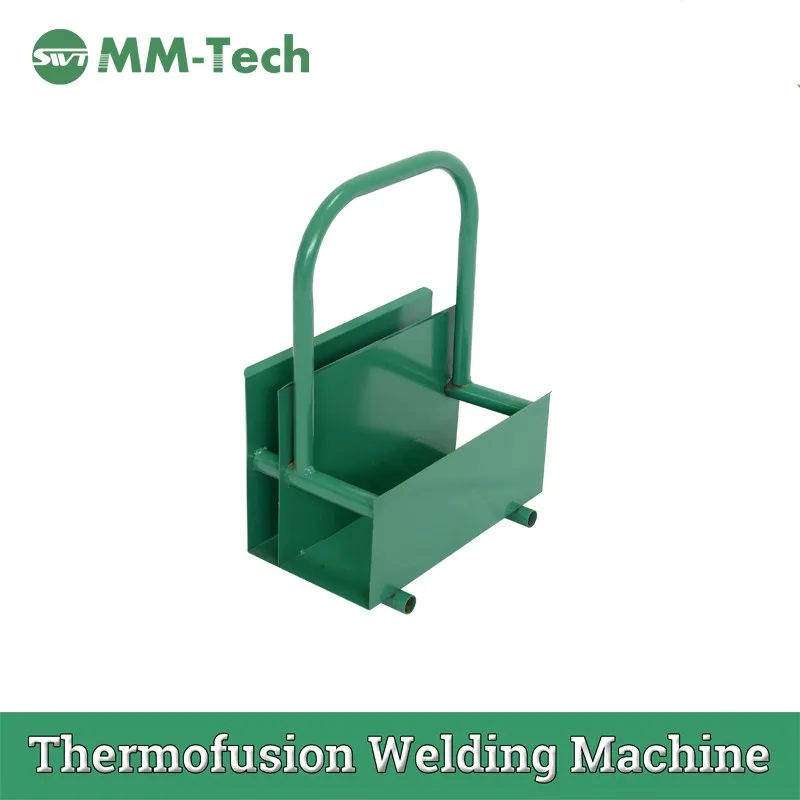

                    Carbon Steel Stand

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* Guide to know more information.
* provide high quality products and workable price



After-Sales Service

* Training how to install & use the machine.
* Engineers available to service machinery overseas.
*Machine Quality Guarantee : 24 months.
If any parts broken or does not work under normal operating, we are free to provide

Related Products

Extrusion Welder Use PP,PE granule to weld

SWT-NS620C

91.8% Response Rate

Electrusion Fusion Welding Machine  DPS20-3.5KW

91.8% Response Rate

Geomembrane Welder

SWT-NS900

91.8% Response Rate

Packing & Delivery
Package Of Butt Fusion Welding Machine
Model
SWT160/63MS
Weight
70KGS
Package Dimensions
93*63*63CM
Package Of Butt Fusion Welding Machine
Size
SWT160/63M
Weight
50KGS
Package Dimensions
70*50*60CM
