Factory Price Workshop Angle Pipe Fitting Fusion Welding Machine For Pp Pe Pvdf Pipe

FOB Reference Price:Get Latest Price
$100,000.00 - $120,000.00 / Set | 1 Set/Sets Workshop Fitting Machine (Min. Order)
Model Number:
SWT-MA1200
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MM-TECH
Voltage:
380V
Frequency:
50/60Hz
Welding Area:
630mm-1200mm
Dimensions:
Standard
Usage:
fabricating elbow, tee, cross
Product:
Workshop Angle Pipe Fitting Fusion Welding Machine For Pp Pe Pvdf Pipe
Item:
Workshop Fitting Machine
Ranges of tee:
630mm-1200mm
Ranges of application:
PE,PP and PVDF
Working voltage:
380V ±10%,50/60Hz
Total power:
71.5KW
Planing tool motor:
4 KW
Heating plate:
60KW
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
7500w
Weight:
18000KGS
Supply Ability
Supply Ability:
5000 Set/Sets per Month Workshop Fitting Machine
Packaging & Delivery
Packaging Details
Factory Price Workshop Angle Pipe Fitting Fusion Welding Machine For Pp Pe Pvdf Pipe:
Wooden case with seaworthy packing
Port
Shanghai,delivery by express
Lead Time :
Within 3 Days After Received Pre-payment


Factory Price Workshop Angle Pipe Fitting Fusion Welding Machine For Pp Pe Pvdf Pipe




Ranges of tee630mm-1200mm
Ranges of cross630mm-1200mm
Ranges of elbow(n×11.25°)

630mm-1200mm

(630mm-710mm-800mm-900mm-1000mm-1100mm-1200mm)

Ranges of applicationPE,PP and PVDF
Working voltage380V ±10%,50/60Hz
Total power71.5KW,including
Planing tool motor4 KW
Heating plate60 KW
Hydraulic unit motor7.5KW
Working voltage415V ±10%,50/60Hz
Total power85.4kW including
Planing tool motor4 KW
Heating plate73.9KW
Hydraulic unit motor

7.5KW

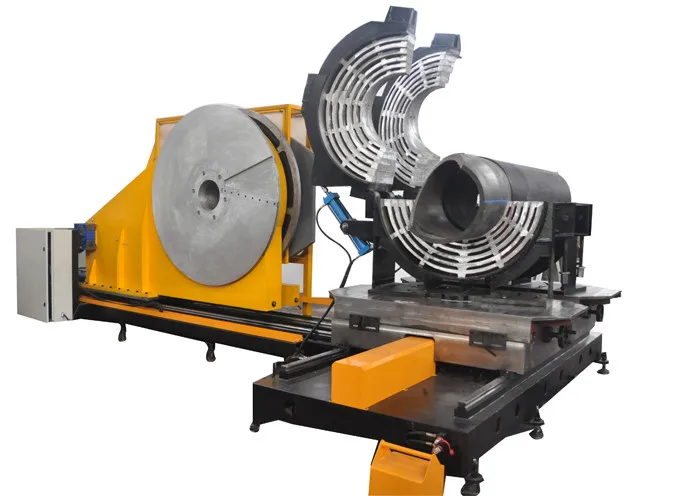

Whole machine consists of five partsBasic frame(heating plate, planing tool, and hydraulic system),elbow clamps,tee clamps,cross clamps and operation box;

Features:
1.Suitable for fabricating elbow, tee, cross and Y shape (45° and 60°)fittingsof PE PP PVDF in workshop.;
2.Integrated structure. Nothing remains but to choose the differentspecial clamps while fabricating different fittings;
3.High accuracy temperature controller;
4.Difference in heating plate surface temperature ≤±5°;
5.Environment temperature:-10° ~ 45°;
6.Electronic count-down timer for heating and cooling time;
7.Removable PTFE coated heating plate.
8.Electric planing tool with safety limit switch.
9.Low starting pressure and high reliable seal structure.

10.Separate two-channel timer records time in soaking and cooling phases with alert.
11.High and accurate and shockproof pressure meter indicates clearer readings.
12.Digital pressure meter is installed on machines.
13.Reliable performance, easy control.
14.Optional parts: 45°, 60°Y Tee clamp.




.jpg







.jpg

HTB17P8nMXXXXXcgXFXXq6xXFXXXA _(1).jpg

1.Quick, efficient and professional response within 24 hours.

2.15 years manufacturing experience in plastic pipe&fitting field.

3.Reasonable price and shoter production cycle.

4.Technical support and solution by chief engineer.

5.Strict quality control system and team

6.Full range of pipe&fitting products for choice

7.OEM or ODM services both availiable for our company

8.Accept sample order before mass order

9.On-time delivery,and 24 hour after-sales service






Q1: Do you accept sample order?

A: Yes sure, please contact us for details.



Q2: How about your after-sales service?

A: We offer promote technology support for all problems and questions. If any  parts broken or does not wor under normal operating,we are free to provide.



Q3: How about warranty period?

A: Guarantee period:24 months.
